Pompa Celup Sewage & Wastewater Tsurumi/Tsurumi Sewage & Wastewater Submersible Pump B Series - Pumps with Channel Impeller
Pumps with Channel Impeller
Discharge Bore(mm)
50 - 800
Motor Output(kW)
0.4 - 110
The B-series is a submersible channel impeller pump designed for handling raw sewage, wastewater and heavy-duty industrial applications, where the pump is subject to complete submersion and requires maximum reliability. The B-series has a proven track record for offering long life in both continuous and intermittent sump applications. It is available as an extended line-up from 50 to 800mm discharge bores.

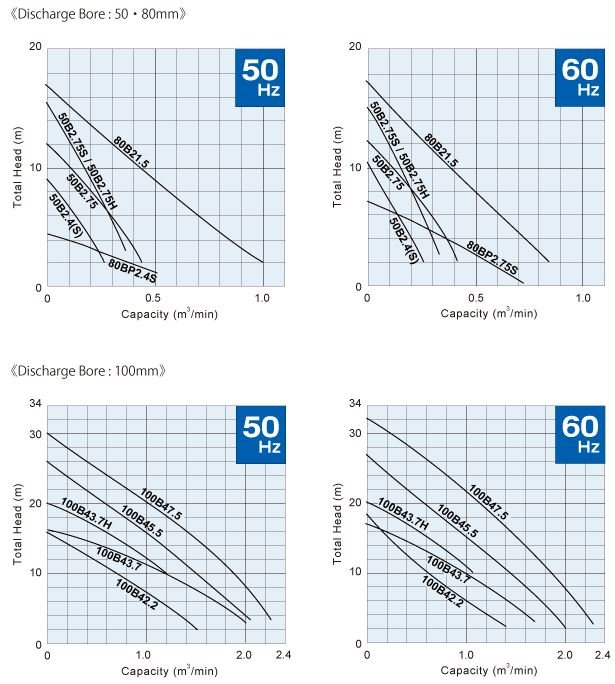

Performance Curves for Bore 50-100 mm
Tsurumi Submersible Pump B Series Performance Curves for Bore 50-100 mm

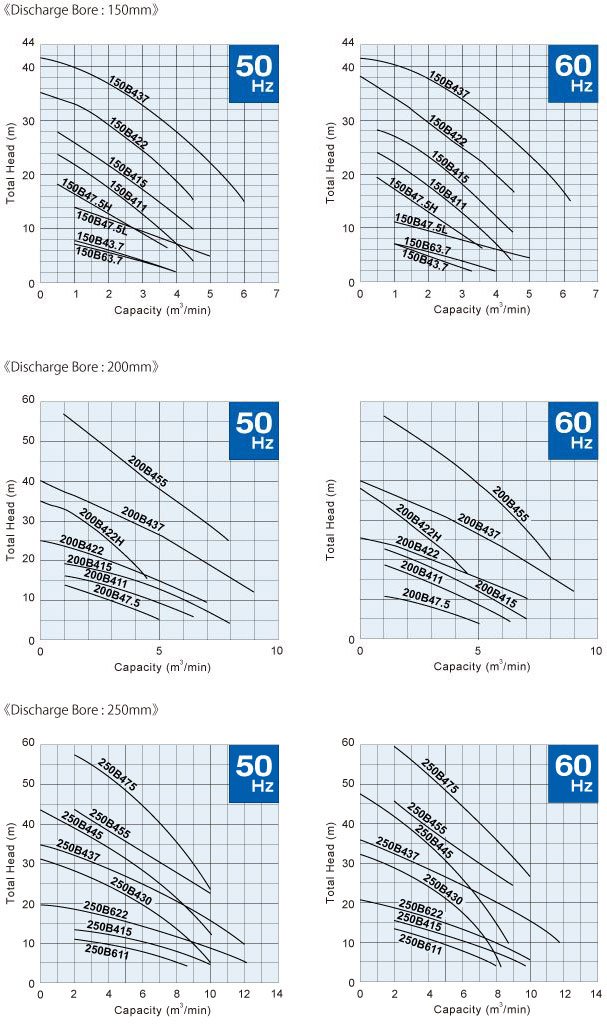

Performance Curves for Bore 150-250 mm
Tsurumi Submersible Pump B Series Performance Curves for Bore 150-250 mm

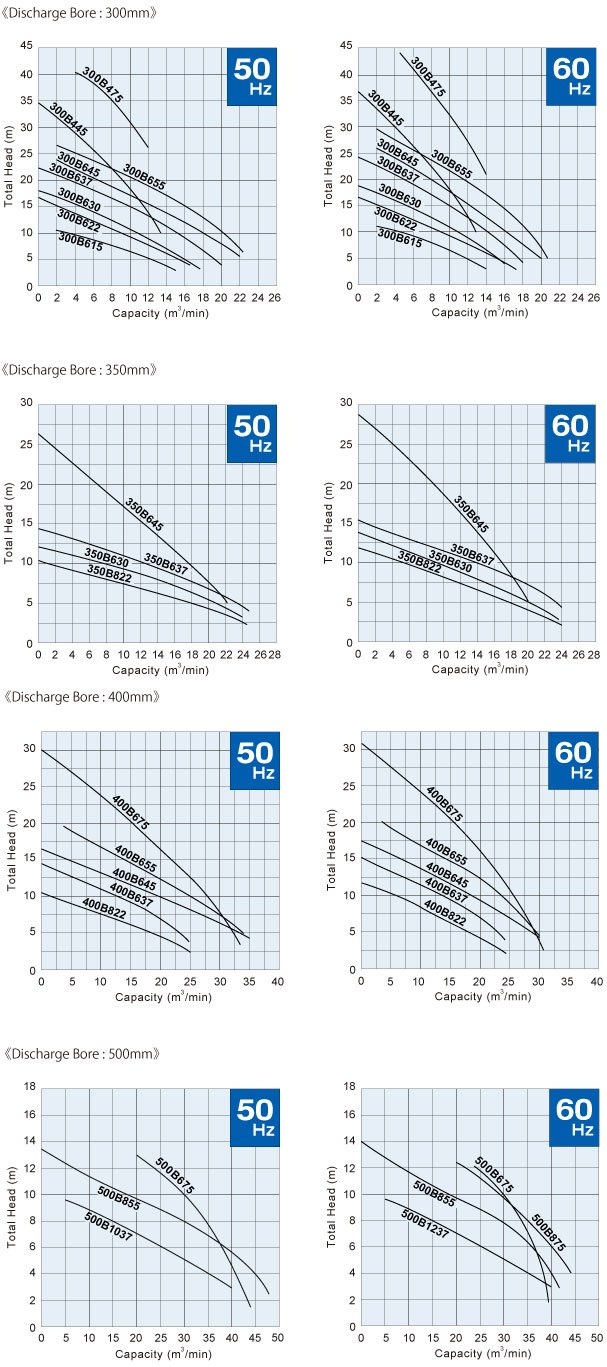

Performance Curves for Bore 300-500 mm
Tsurumi Submersible Pump B Series Performance Curves for Bore 300-500 mm

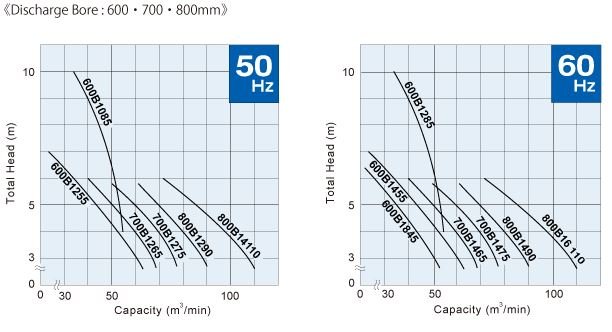

Performance Curves for Bore 600-800 mm
Tsurumi Submersible Pump B Series Performance Curves for Bore 600-800 mm
Model Selection 50/60Hz
Discharge Bore (mm)
Model
Motor Output (kW)
Phase
Starting Method
300
300B615
15
Three
Star-Delta
300
300B622
22
Three
Star-Delta
300
300B630
30
Three
Star-Delta
300
300B637
37
Three
Star-Delta
300
300B445
45
Three
Star-Delta
300
300B645
45
Three
Star-Delta
300
300B655
55
Three
Star-Delta
300
300B475
75
Three
Star-Delta
350
350B822
22
Three
Star-Delta
350
350B630
30
Three
Star-Delta
350
350B637
37
Three
Star-Delta
350
350B645
45
Three
Star-Delta
400
400B822
22
Three
Star-Delta
400
400B637
37
Three
Star-Delta
400
400B645
45
Three
Star-Delta
400
400B655
55
Three
Star-Delta
400
400B675
75
Three
Star-Delta
500
500B1037(50Hz)
37
Three
Star-Delta
500
500B1237(60Hz)
37
Three
Star-Delta
500
500B855
55
Three
Star-Delta
500
500B675
75
Three
Star-Delta
500
500B875(60Hz)
75
Three
Star-Delta
Guide Rail Fitting model available. Refer to the individual catalog.
