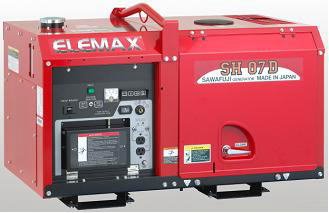

Genset Silent Honda/Generator Silent Honda Elemax SH07-SH11D
Genset Silent Honda/Generator Silent Honda Elemax SH07-SH11D
Description
| Model NAME |
SH07D |
SH11D |
| Type |
LD |
U |
R |
LD |
U |
R |
| Generator |
Frequency (Hz) |
60 |
50 |
60 |
50 |
| Rated Output (kVA) |
6.5 |
5.5 |
10.0 |
8.0 |
| Maximum Output (kVA) |
7.0 |
6.0 |
11.0 |
8.8 |
| Rated Voltage (V) |
120/240 |
240 |
220 |
120/240 |
240 |
220 |
| Rated Current (A) |
54.2/27.1 |
22.9 |
25 |
41.7x2/41.7 |
33.3 |
36.4 |
| Phase / Wires |
1/4 |
1/2 |
1/3 |
1/2 |
| Type |
2-pole, field rotating type with AVR |
| Power Factor |
1.0 |
| ENGINE |
Model |
KUBOTA Z482 |
KUBOTA D722 |
| Type |
Vertical, water-cooled, 4-cycle diesel engine |
| No. of Cylinders |
2 |
3 |
| Continuous Rated Output (kVA) |
8.1 |
6.9 |
12.2 |
10.3 |
| Engine Speed (rpm) |
3600 |
3000 |
3600 |
3000 |
| Starting System |
Electric Starter |
| Control Panel |
Receptacle Types |
5-15R |
2x15A
(2P+ground) |
6-15R |
5-15R |
3x15A
(2P+ground) |
6-15R |
| Bolt-on Output Terminal |
3P |
N/A |
2P |
3P |
N/A |
2P |
| Pilot Lamp |
Equipped |
| Volt Meter |
Equipped |
| Hour Meter |
Equipped |
| Full Power Switch |
Equipped |
N/A |
N/A |
| Others |
Terminals for ATS connection (ATS not included) |
Equipped |
| Fuel Tank Capacity (ℓ) |
28.0 |
Fuel Consumption
(ℓ/h) |
Full Load |
2.6 |
2.2 |
4.1 |
3.2 |
| 3/4 Load |
2.1 |
1.8 |
3.3 |
2.5 |
| 1/2 Load |
1.7 |
1.5 |
2.7 |
2.1 |
| 1/4 Load |
1.4 |
1.2 |
2.2 |
1.8 |
Continuous Operation Hours
(h) |
Full Load |
10.0 |
12.0 |
7.0 |
8.5 |
| 3/4 Load |
13.3 |
15.6 |
8.5 |
11.2 |
| 1/2 Load |
16.5 |
18.7 |
10.4 |
13.3 |
| 1/4 Load |
20.0 |
23.3 |
12.7 |
15.6 |
Dimensions
L x W x H (mm) |
1066 x 618 x 698 |
1281 x 618 x 698 |
Approx Net
Weight(kg) |
235 |
295 |
Sound Level (dB)
(Full Load at 7m) |
67.5 |
66.5 |
69 |
68 |
| Emergency Stop System |
Shutdowns engine when genset senses abnormalities in oil pressure or water temperature, or when access terminal cover is opened. |
|
| |
|
